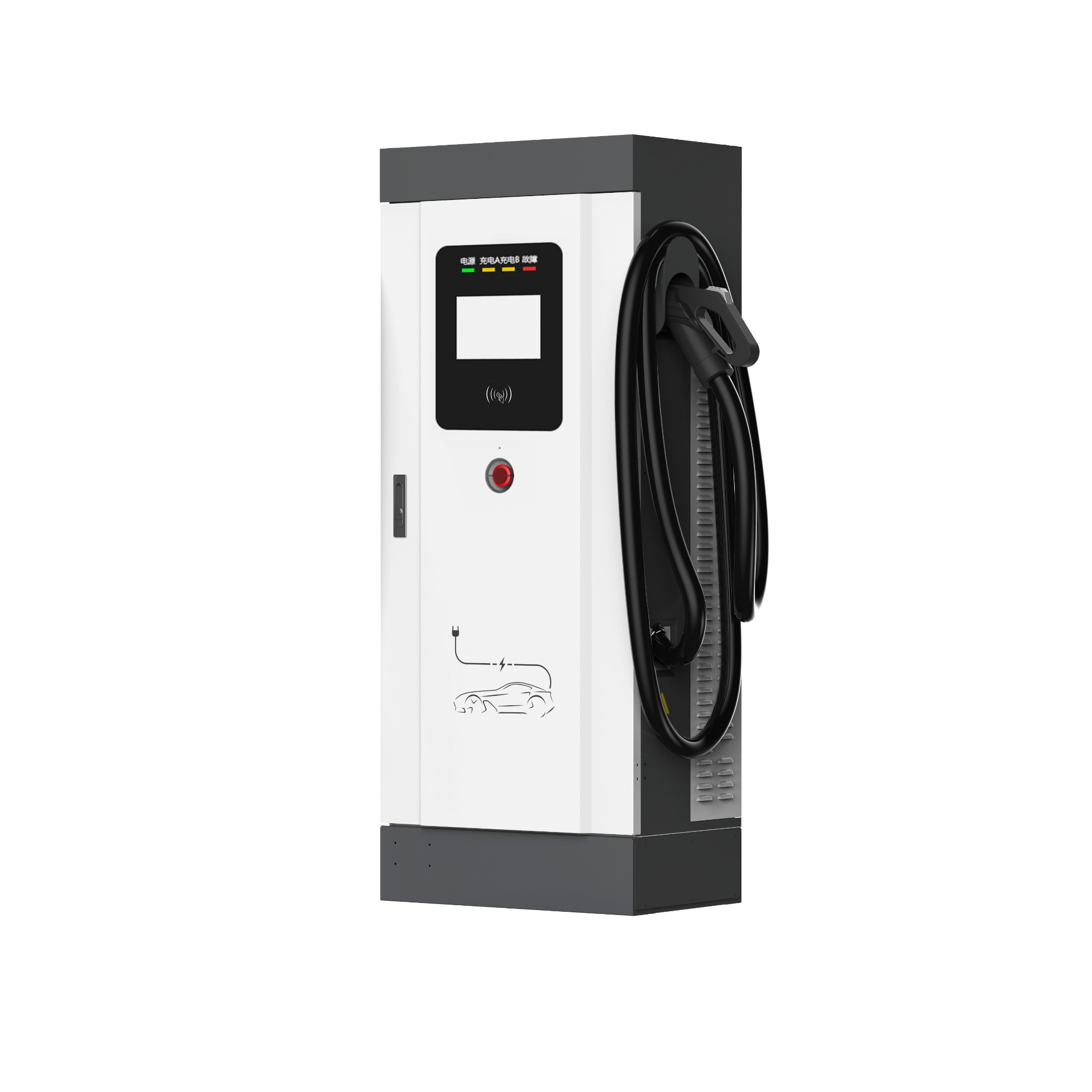

40KW/60KW Integrated DC charging pile

Ac Input Voltage Range (V)

380 ±15%

Frequency Range(Hz)

45-60

Output Voltage Range(V)

200~750

Rated Current(A)

80

Output Maximum Power(KW)

60

Charging Port

1

Charging Operation

Swiping Card/Scan QR codes

Noise(dB)

<65

Stream Precision

≤±1%

Constant Voltage Precision

≤±0.5%

Output Current Error

≤±1%

Output Voltage Error

≤±0.5%

Level of Protection

IP54

Operating Temperature(°C)

-20-50

Storage Temperature(°C)

-20-70

Interactive Display

7-inch Color Touch Screen

Metering and Billing

DC Energy Meter

Reliability(MTBF)

50000 hours

Defensive Function

Over-undervoltage Short Circuit, Overload, Leakage, Surge

Protection

Installation Method

Overall Floor-Standing Type

Shell Material

Sheet Metal

Optional Items

            4G Wireless Communication，EV Charger7m/10m

Size(mm)

Length 566* Width   361* Height 1400
