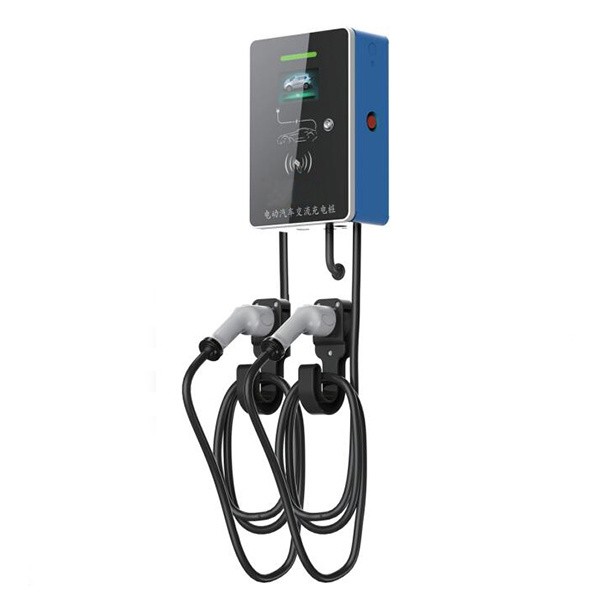

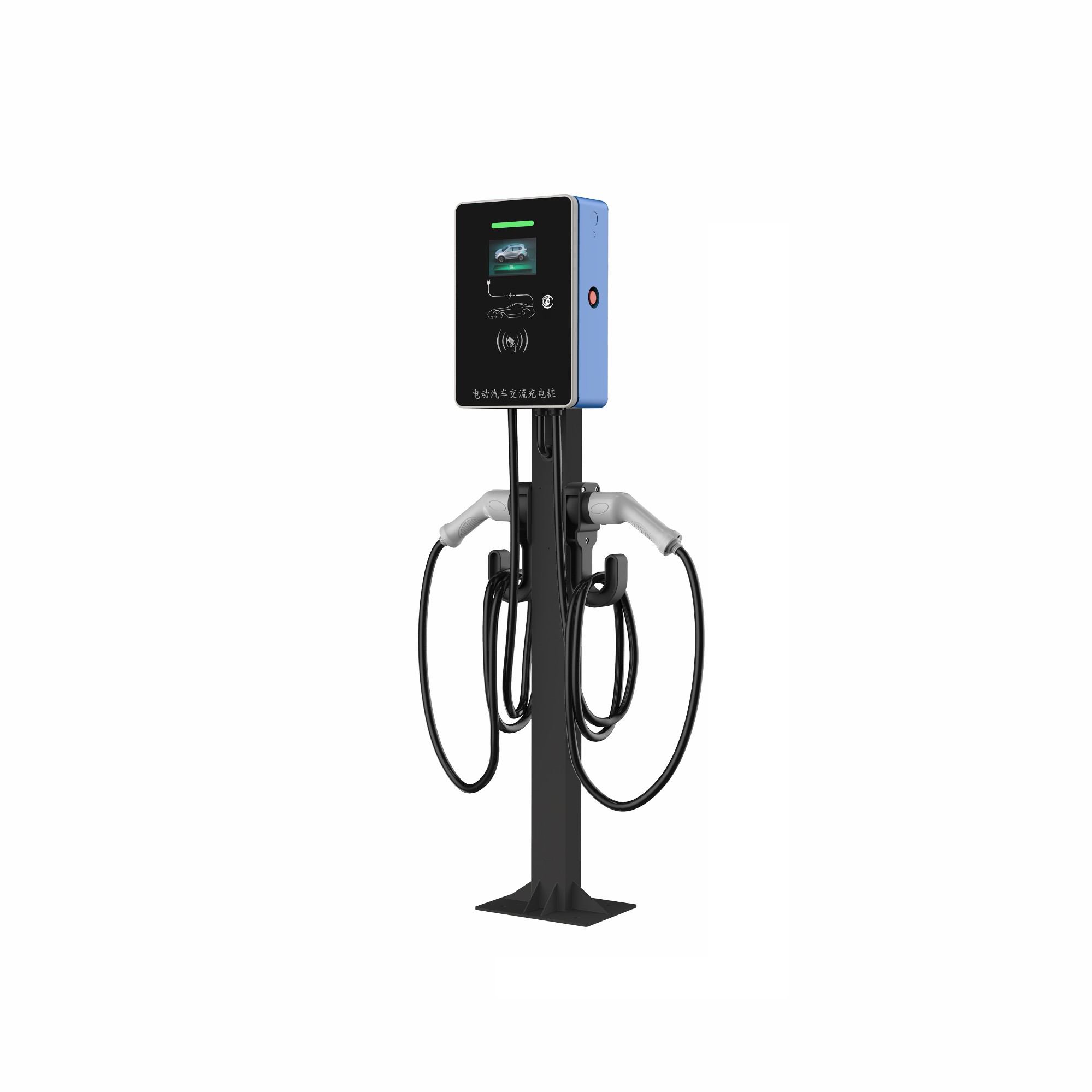

7KW/14KW Dual-port car AC charging pile

Ac Input Voltage Range (V)

220V ±15%

Frequency Range(Hz)

45-60

Output Voltage Range(V)

200 ±15%

Rated Current(A)

16A*2/32A*2

Output Maximum Power (KW)

7KW/7KW*2

Charging Port

2

Charging Operation

Swiping Card/Scan QR codes

Networking

Standard RJ45 Interface/4G/LoRa

Display Screen

4.3inch/Screenless

Monitoring Platform

Offline Management Tool/Cloud Fast Charging Operation Platform

Dielectric Strength

≥2000V

Leakage Protection(mA)

30

Level of Protection

IP54

Operating Temperature(°C)

-20-50

Storage Temperature(°C)

-40-70

Interface Type

GB20234.2-2015 Connection Method C

Metering Method

Integrated Metering/Independent Metering

Reliability(MTBF)

50000 hours

Defensive Function

Over-undervoltage Short Circuit, Overload, Leakage, Surge Protection

Installation Method

Wall Mounted

Shell Material

Injection

Optional Items

EV Charger 5m

Size(mm)

Length 270* Width   130* Height 400
