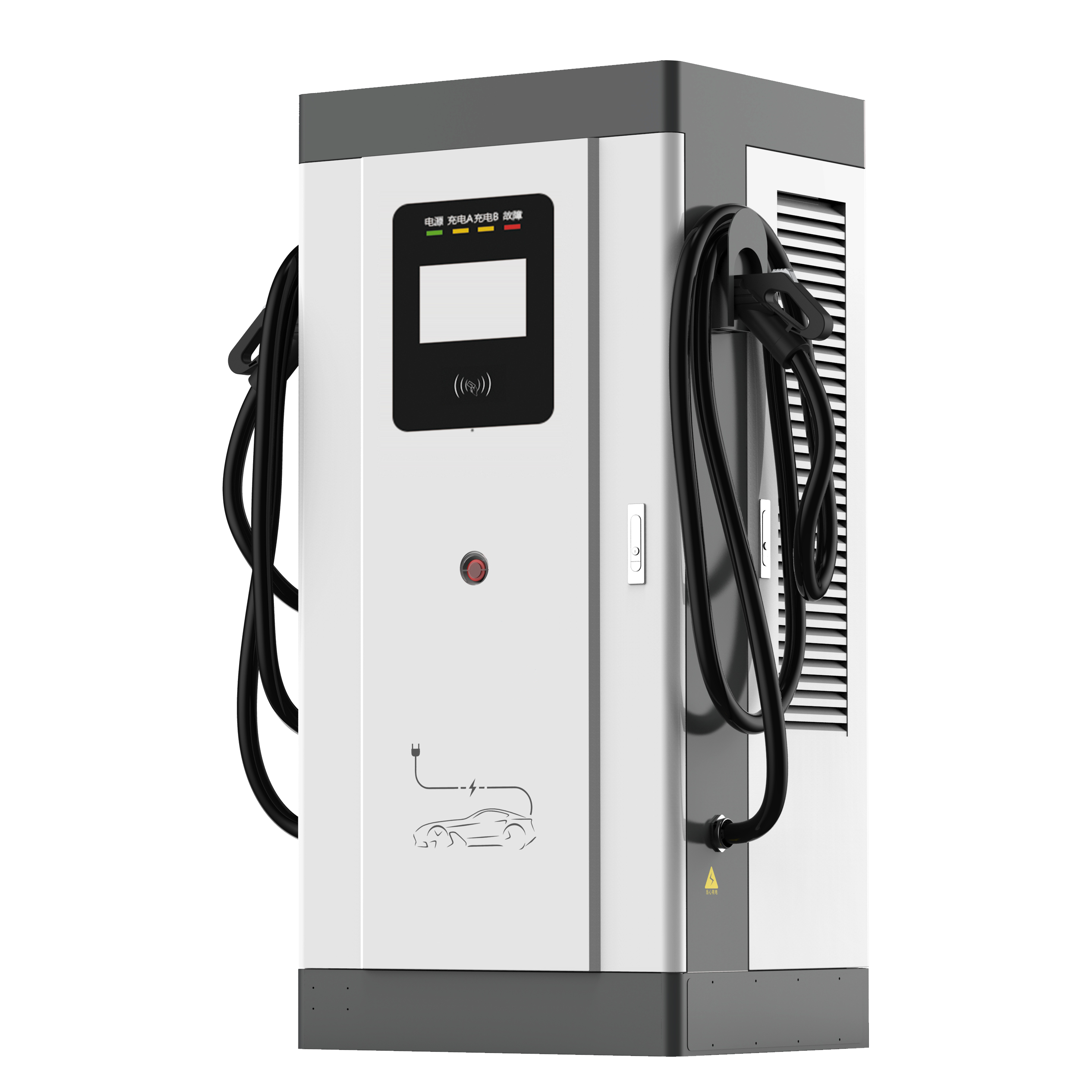

120kW/240kW Integrated Dual-port DC charging pile

Ac Input Voltage Range (V)

380 ±15%

Frequency Range(Hz)

45-60

Output Voltage Range(V)

200~750

Rated Current(A)

160

Output Maximum Power(KW)

120

Charging Port

2

Charging Operation

Swiping Card/Scan QR codes

Noise(dB)

<65

Stream Precision

≤±1%

Constant Voltage Precision

≤±0.5%

Output Current Error

≤±1%

Output Voltage Error

≤±0.5%

Level of Protection

IP54

Operating Temperature(°C)

-20-50

Storage Temperature(°C)

-20-70

Interactive Display

7-inch color touch screen

Metering and Billing

DC energy meter

Reliability(MTBF)

50000 hours

Defensive Function

Over-undervoltage Short Circuit, Overload, Leakage, Surge   Protection

Installation Method

Overall Floor-Standing Type

Shell Material

Sheet Metal

Optional Items

4GWireless Communication，EV Charger7m/10m

Size(mm)

Length 750* Width   550* Height 1630
